BRF-10S
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=480,h=592,fit=crop,trim=0;1127.9087452471483;0;0/AVLD5DezveFGyO9w/20220524_144532-dOqXJ7Vq35FOQ7xg.jpg)
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=328,h=278,fit=crop,trim=0;333.8005390835579;0;0/AVLD5DezveFGyO9w/20220524_144532-dOqXJ7Vq35FOQ7xg.jpg)

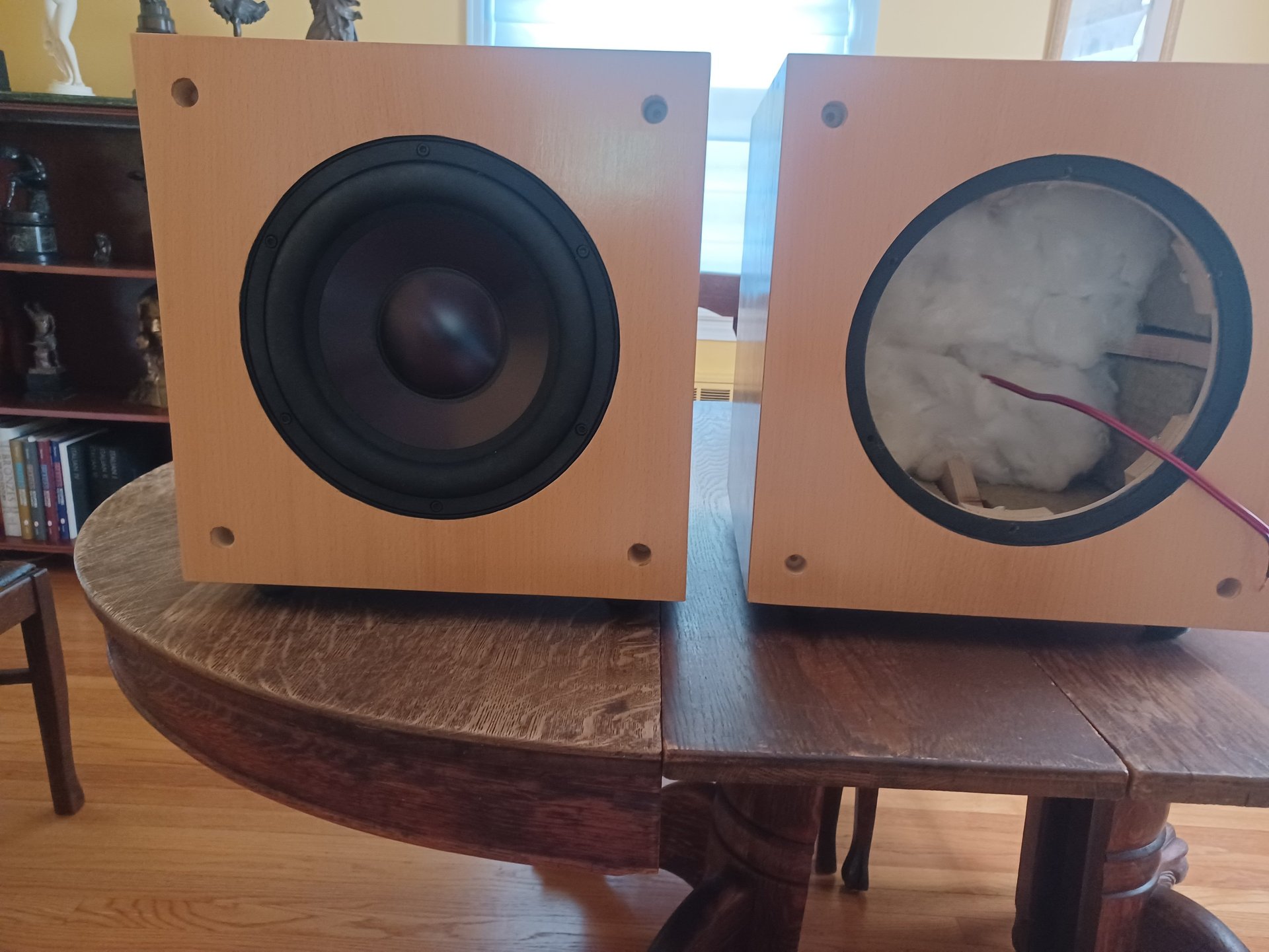

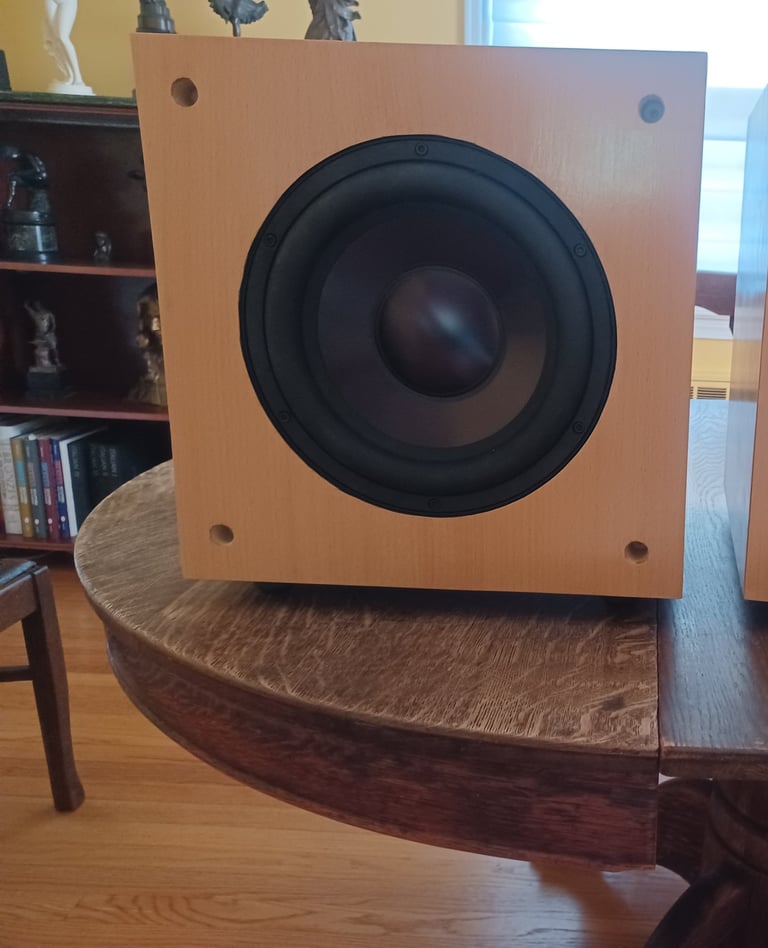

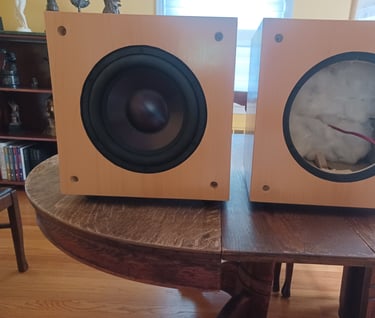

The BRF-10S is a sealed subwoofer. It uses a 10 inch Dayton RSS265HF-4. The enclose volume is roughly 25 liters tuned to 45 Hz and a Qtc of .836 .
BRF-10S Design notes
Design Goals
1. Design a sealed sub-woofers
2. For both music and Home Theater
3. Minimum enclosure for living room use
4. Subsonic response not required
I chose the RSS265HF-4 for two reasons, the clean, low bass and cabinet size. This was also a rebuild of my first ever design with this driver and a Denovo 2 cubic foot knock down MDF cabinet which I ported. It ended up being tuned to 14 Hz, which was a novice mistake. Even after trying to limit the cone travel caused by explosions during action scenes with a MiniDSP the voice coil would still hit the magnet. So with a few more years of experience I decided to switch to a sealed cabinet and built two.
I built two 25 liter enclosures out 3/4 inch Baltic birch plywood with the a two layer baffle and back made from 3/4 MDF. I added vertical and horizontal braces modeled after the braces in the Denovo enclosure but used the 3/4 inch Baltic birch instead of MDF. This closely matched the Parts Express recommendations and modeled fine in WinlSD, a 25 liter enclosure tuned to 45.45 Hz with a not too high Qts of 0.836. I wrapped it with beech veneer and finished it with 3 coats of clear shellac just like the rest of the speakers in the living room. The connections use SpeakOns and it has rubber feet. Finally I used the Parts Express Speaker Grill Frame Kit and stuff the enclosure with a pound of PolyFil.
The two BRF-10S sub-woofers are driven by a single Crown XLS 1002 DriveCore 2 Power Amplifier, one on each channel. I am using a MiniDSP 2x4 which doesn't gain match well with the Crown amp and my NAD AVR so I had to put a ART CLEANBoxPro Stereo Balanced/Unbalanced Converter between the MiniDSP and the Ctrown amp. This solved the gain problem and now driving the sub-woofers to clipping is not an issue. I have made one feeble attempt at using MSO to balance the two sub-woofers but I know I have a lot more work ahead of me to get them dialed in.
Simulations

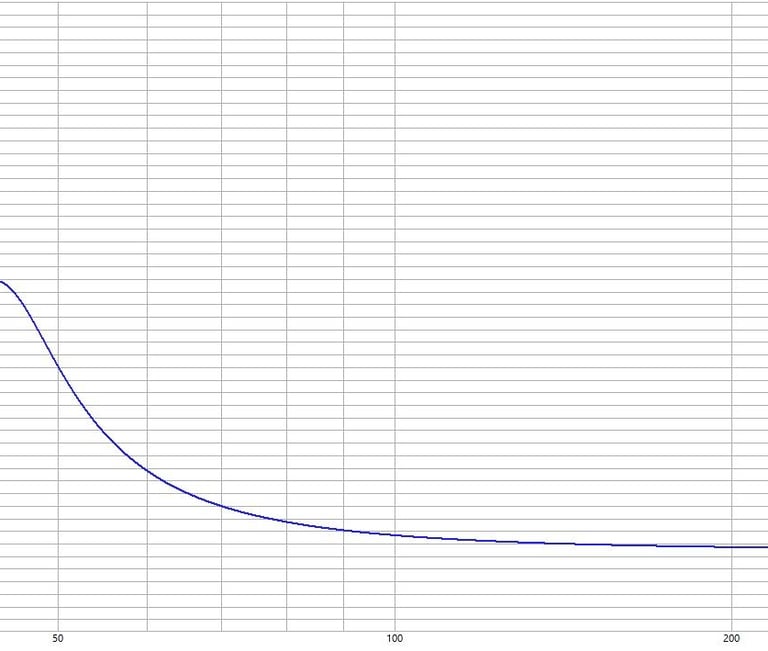

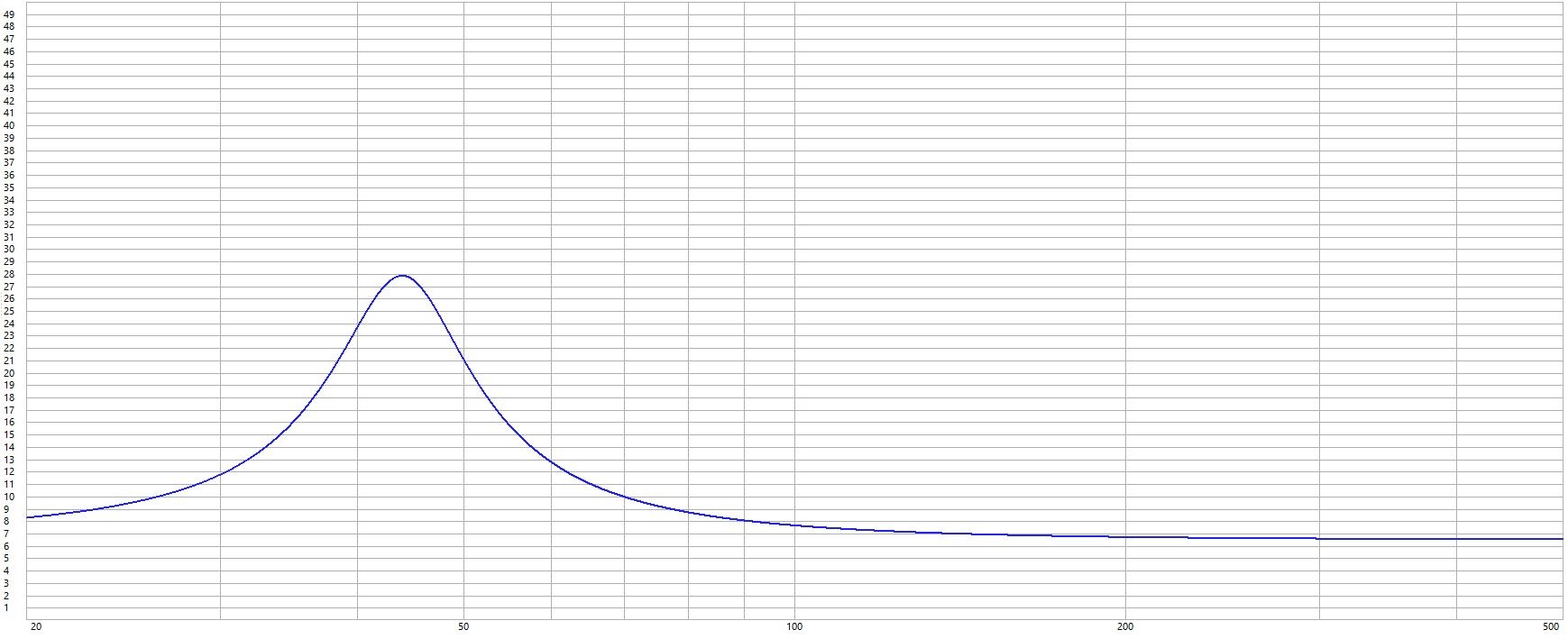

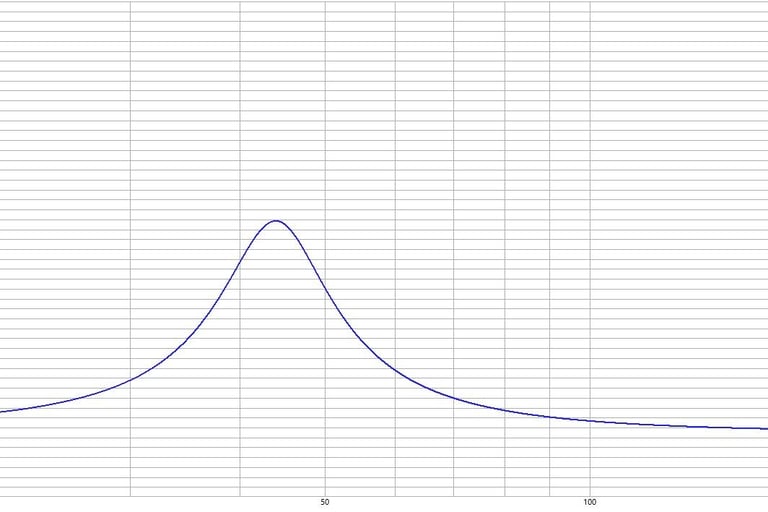

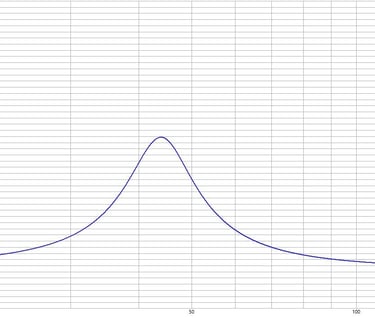

BRF-10S WinISD modeled impedance

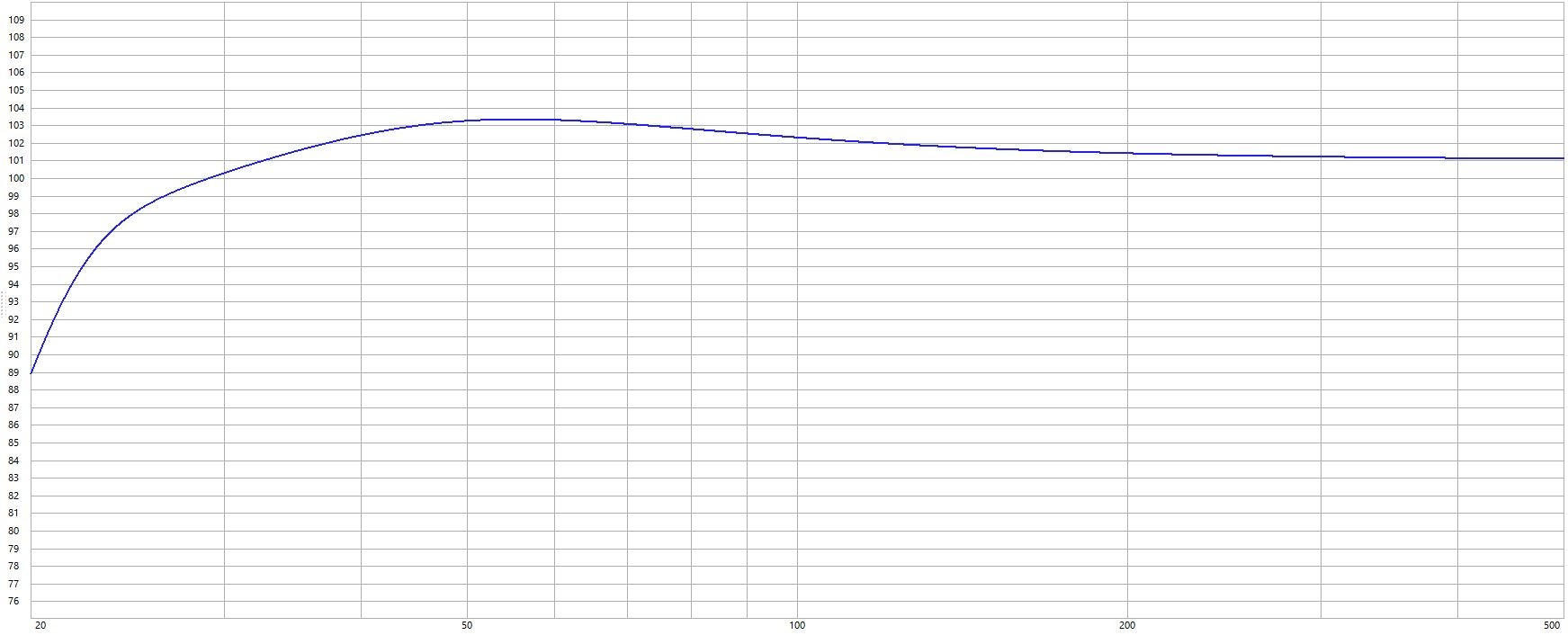

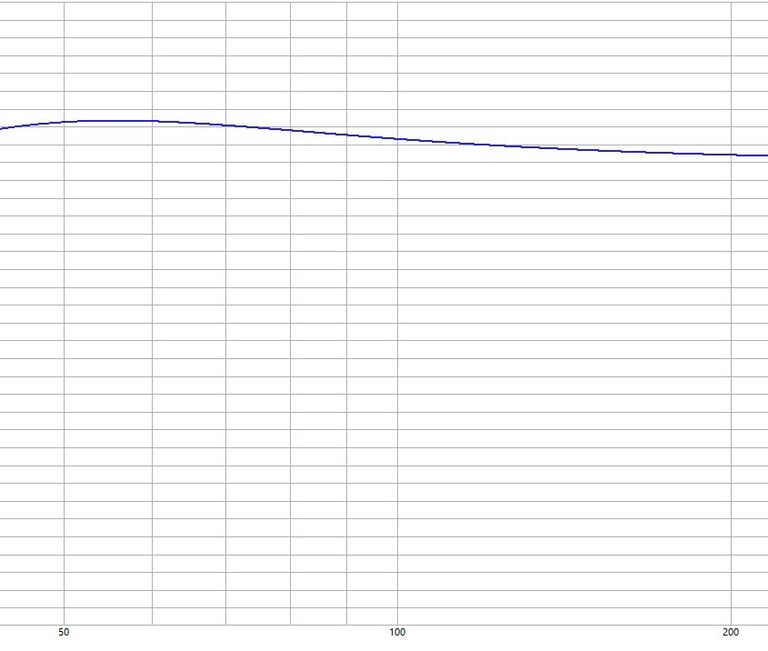

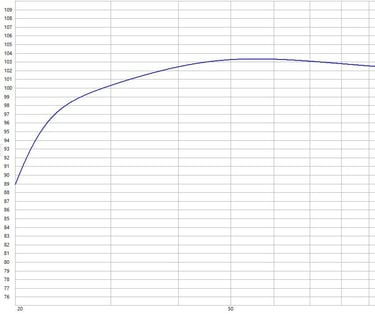

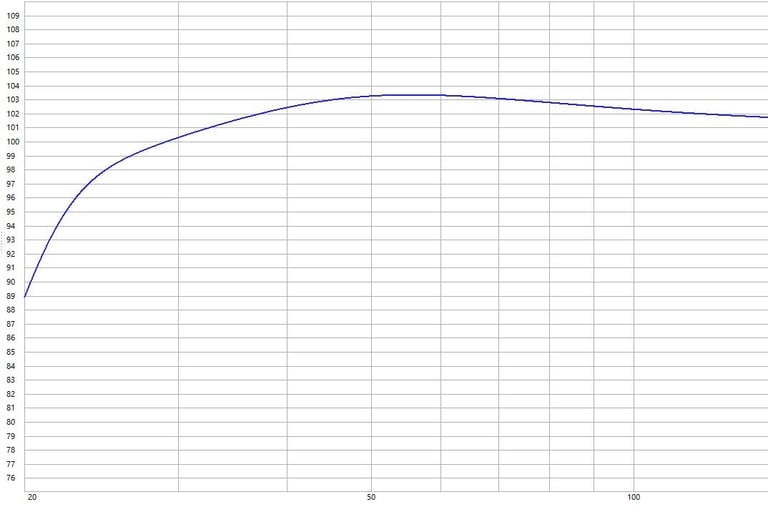

BRF-10S WinISD modeled Frequency Response

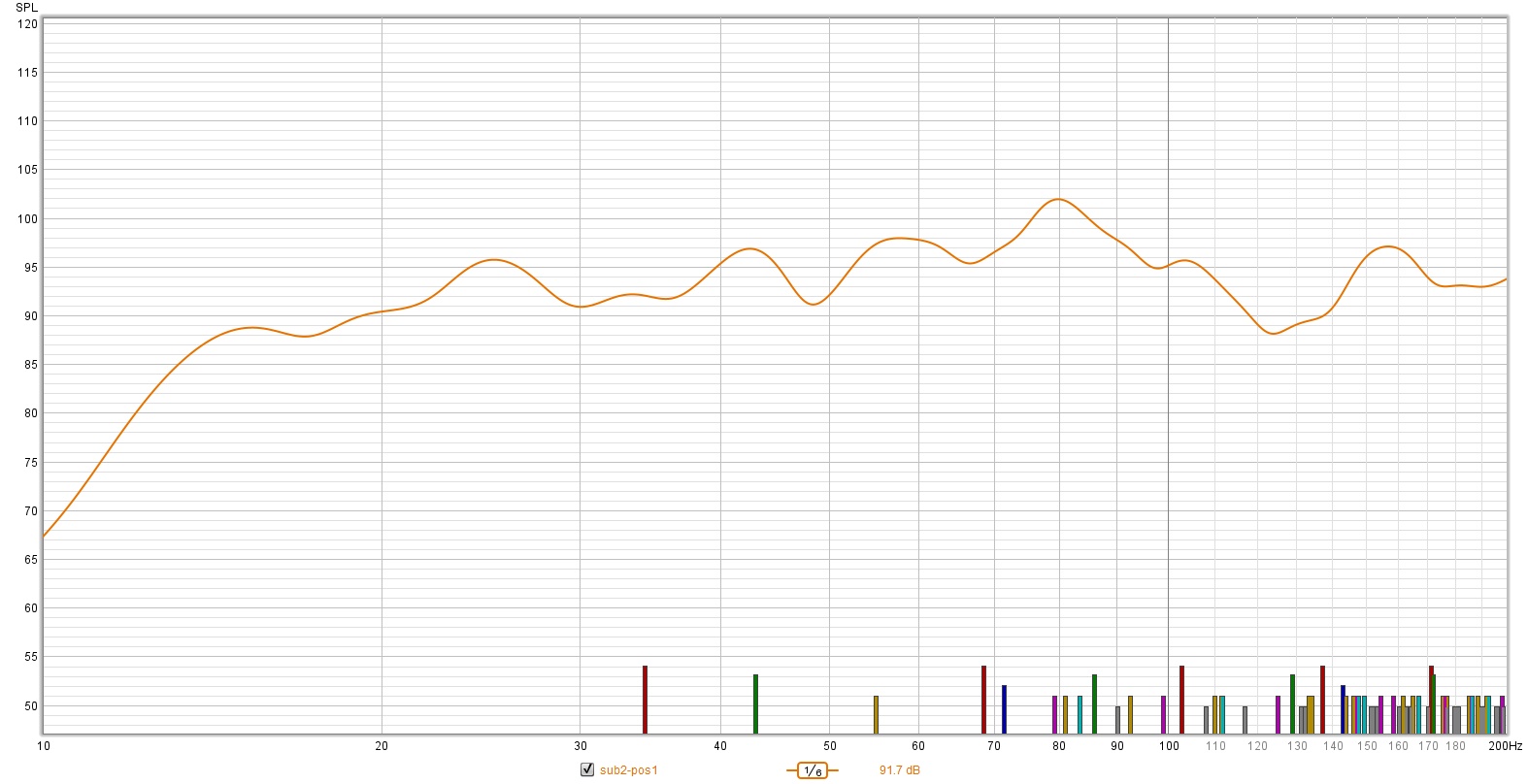

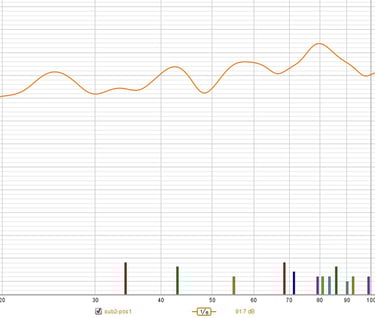

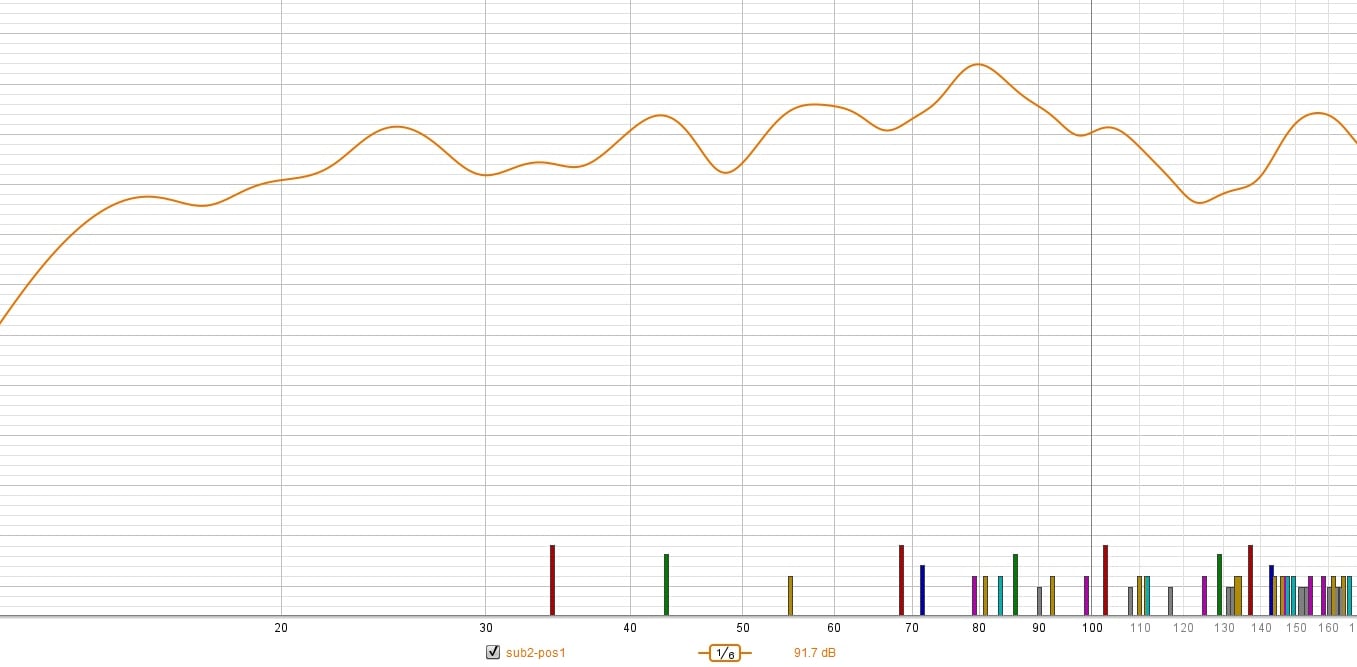

MLP measurement
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=1107,h=544,fit=crop,trim=141.00151745068285;105.42367601246104;0;111.55295950155762/AVLD5DezveFGyO9w/brf-10s-mlp-m6L4eEMgkzCbwRaB.jpg)
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=328,h=278,fit=crop,trim=110.40993788819877;363.4235668789809;0;388.4872611464968/AVLD5DezveFGyO9w/brf-10s-mlp-m6L4eEMgkzCbwRaB.jpg)
BRF-10S Total Frequency Response
